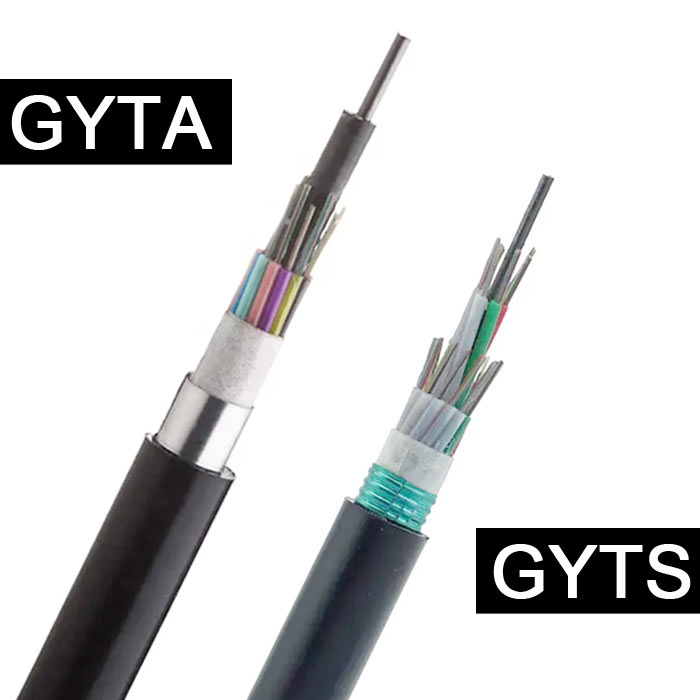

GYTS GYTA Armored Fiber Optic Cable
  • Product class: Product Transmission Category Outdoor Fiber Optic Cable
  • Product describe:High Quality GYTS GYTA Armored Fiber Optic Cable Outdoor 4 6 8 12 24 48 96 Core Single Mode Duct Loose Tube Optical Cable
 [→] W1601 Surface mounted

  • High Quality GYTS GYTA Armored Fiber Optic Cable Outdoor 4 6 8 12 24 48 96 Core Single Mode Duct Loose Tube Optical Cable

    Product Details


    Armored Loose Tube Single Jacket/SingleArmor fiber optic cable with fibers placed in loose buffertube stranded around central
    strength member.The cable core is protected with jelly to prevent water intrusion and migration,with a corrugated steel tape
    armorwhich provides rigid protection, rodent resistance and cover with a black Polyethylene out jacket.

    Fiber
    Count
    Cable
    Diameter (mm)
    Cable
    Weight (kg/km)
    Allowable Tensile Load
    (N/100mm)
    Allowable Crush Resistance
    (N/100mm)
    Short Term
    Long Term
    Short Term
    Long Term
    2-30
    9.7
    96
    1500
    600
    1800
    800
    32-48
    10.7
    111
    1500
    600
    1800
    800
    50-72
    11.6
    136
    2000
    600
    1800
    800
    74-96
    13.0
    166
    2000
    600
    1800
    800
    98-144
    15.1
    288
    2000
    600
    1800
    800

    Fiber: 2-288 fibers
    Loose tube gel-filled
    Armor: Corrugated steel tape
    Central Strength Member: FRP or Steel Wire
    Outer Jacket:
    Black UV-and moisture-resistant polyethylene(PE)

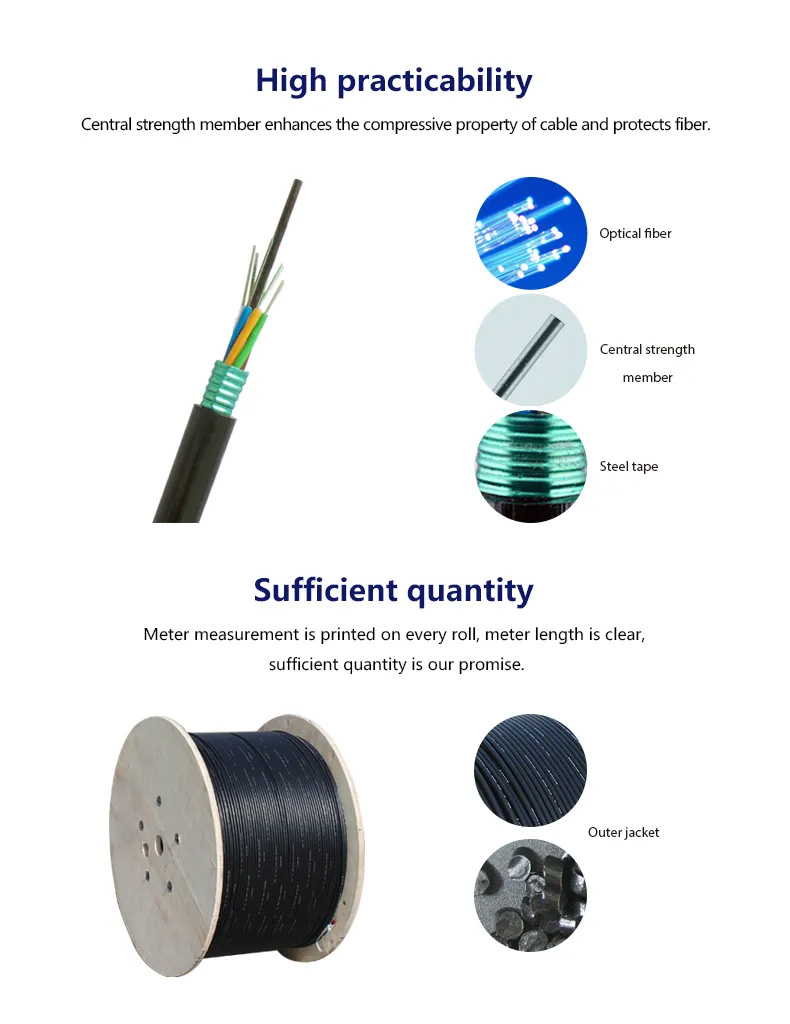

    Feature: Loose tube gel-filled construction for superior fiber protection. Corrugated steel tape armorto protect cable from mechanical damage and rodent protection.

    UV and moisture-resistant design.

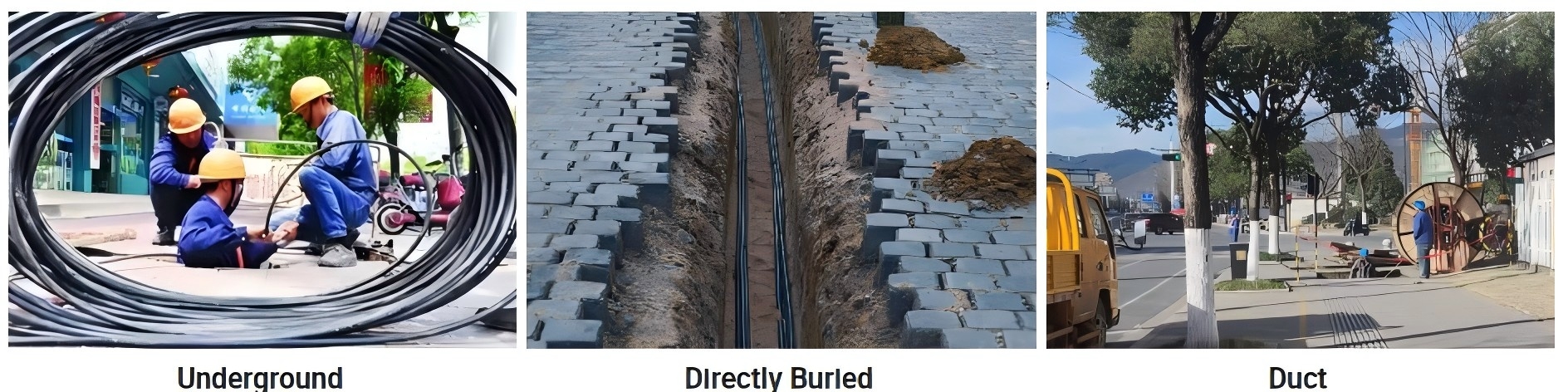

    Applications
    Backbones and Access.
    Installed in ducts, underground conduits.

    Packing & Delivery
